BIG BALE Round Bale Hay Feeder with 4X4 Wire Mesh
Northeast Gate Company brand Hay Racks
These racks are ideal for feeding large bales of hay. Keeps hay off of the ground. They will fold up flat when not in use for easy storage
during the summer. Holds up to 1800 lb bales, round or square bales. Included safety roll bars on ends prevent hay from tipping or rack
folding shut when no hay is on rack. Made of 1 3/8 X 14 gauge tubing. Powder Coated "Wheel Grey" unless another color is requested.
Collapsable Round Bale Hay Rack
Hay Riser Hay Rack
(# FHR4.W)Wire mesh-Price:

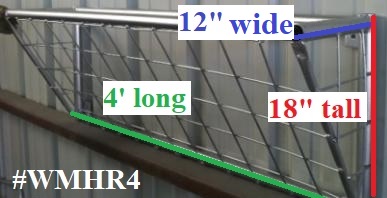

Item # (WMHR4) 4 ft. SL Wall Mount Hay Rack - (12" wide at top, 18" tall, 4' long)
8ft. Standing Hay Rack
8 ft. Standing Hay Rack
*Let us know if you prefer the vertical bar, or the 4x4 wire mesh in the hay holding area.
Both versions pictured above.










(Add a Rain Canopy to protect your hay, see below )
This feeder is ideal to use in stalls, kidding pens, or at shows. Hooks in back for easy attachment to fence or gate.
Hooks can be removed and feeder mounted to the wall. Has section for hay and grain. Ideal for all smaller sized
livestock such as alpacas, llamas, goats, sheep, etc. Feeders made with galvanized metal and
POWDER COATED in your color choice.

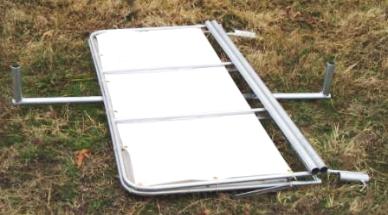

White Rain Canopy and Frame
Add to your 4ft and 8ft Free Standing OR 4ft, 6ft, or 8ft
Heavy Duty with Trough Hay Racks listed above and below.
Easy access to open for filling with hay. Will open from both
sides for adding flakes of hay or canopy will lift off to add
entire bale. Clamp attachment with slide in holder for canopy
top. Canopy can be attached to frame with rope or zip ties.
The cover is waterproof, UV resistant, and will not crack or
become brittle in cold weather.
White is the standard color of
the canopy
, other colors available for $10.00 more.

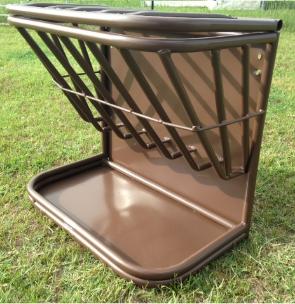

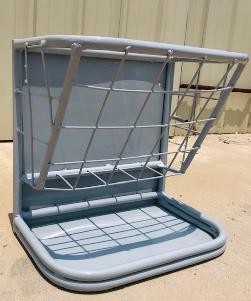

Small Livestock Wall Mount Hay Racks
Hanging Stall or
Kidding Pen Feeder
Bar Style Hay Area
Item # GFKP.B- Hanging Stall/Kidding Pen Feeder with bars (20" wide)
Item # GFKPL.B Hanging Stall/Kidding Pen Feeder with bars (40" wide)


Wire Mesh Style Hay Area
Item # GFKP.W- Hanging Stall/Kidding Pen Feeder with 4"x4" wire mesh (20" wide)
Item # GFKPL.W Hanging Stall/Kidding Pen Feeder with 4"x4" wire mesh (40" wide)

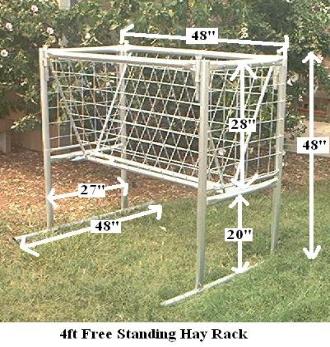

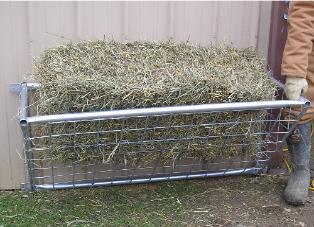

Free Standing Hay Racks - Available with wire mesh or bar hay area.
Just drop a square bale in these feeders and cut the strings. Easy to disassemble and
move. Breaks down into 3 pieces for easy moving. Made with galvanized metal and
Powder Coated. Let us know your color preference.
(Add a Rain Canopy to protect your hay, see below )
Heavy Duty Hay Racks with Trough for small sized livestock
CLICK HERE TO RETURN TO MAIN PAGE OF CATALOG
(270)- 525-9977
22

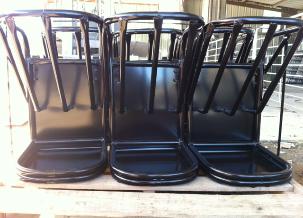

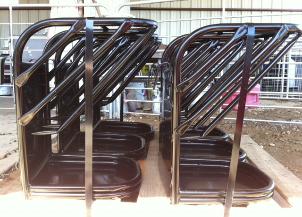

This is the new mini hay and grain feeder.  It is half the width of our current Hanging Stall
Feeder pictured above and works much better for miniature horses and donkeys.  There is more
distance between the hay and the pan so livestock with heads larger than sheep or goats can get
their head in and out better to eat grain.
Item #: GFMINI        Price: Mini Feeder is
Mini Feeder (For miniature/small sized animals)
Measurements:
Overall Height: 20"
Hay Manger: 12"
Width: 12 1/2"
Deep: 14"
LAZY JV RANCH Equipment Sales
Online Catalogue
Equipment sized for goats, sheep, mini horses,
and other livestock
270-525-9977
Located in Bremen, Kentucky        lazyjvranch@yahoo.com   Phone: 270-525-9977

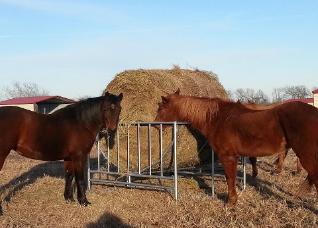

BIG BALE Round Bale Hay Feeder
Item # BB1000 = Big Bale Round Bale Hay Feeder     - Item # BB1000R = Big Bale Roof frame
for Big Bale Feeder and Big Bale Roof Frame
(customer supplies roofing material for roof frame. Wood, metal, or tarp can be used.)
Heavy Duty 6ft tall Hay Rack with Trough for larger sized livestock
Available in 4ft, 6ft, and 8ft lengths

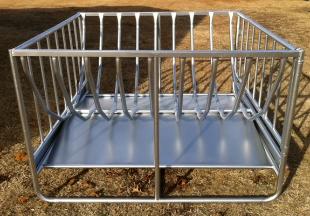

BIG BALE Round Bale Hay Feeder with added Trough
Item # BB1000T = Big Bale Round Bale
Hay Feeder with Trough

Item # BB1000R = Big Bale Roof frame

-for the Big Bale Feeder with
trough AND Big Bale Roof Frame

(customer supplies roofing material for roof frame.
Wood, metal, or tarp can be used.)
Item # (WMHR6) 6 ft. SLWall Mount Hay Rack - (new design) 18" wide at top, 24" tall, 6' long

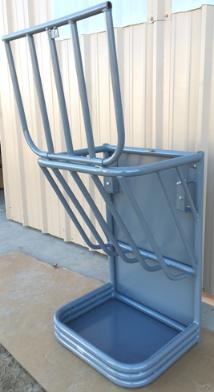

Hanging Large/Regular Size Horse Hay and Grain Feeders
#HHF - Hanging horse stall feeder:
(Add a Rain Canopy to protect
your hay, see above Items
# CAN4, CAN6, CAN8 )

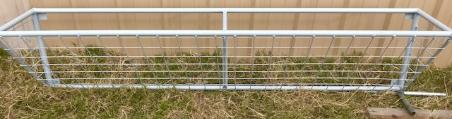

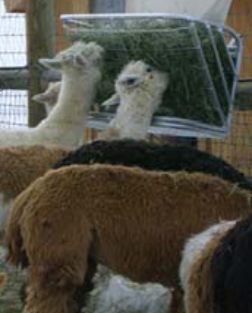

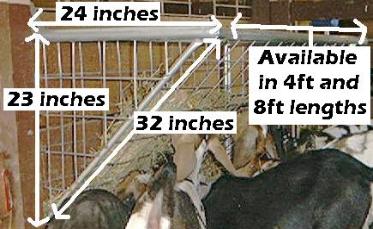

Wall Mount Hay Rack with 4"x4"
wire, ideal to use with goats, sheep,
mini horses, alpacas, llamas, etc.
Let us know your color choice from
our color chart.
Hay racks made with galvanized steel and powder coated, with wall mount brackets
Large Livestock Wall Mount Hay Racks
Wall Mount Hay Rack with bars pictured, ideal to use with larger sized livestock like horses, cattle, etc.
Bars set on 5 inch centers, with a 4 inch opening between the bars. Brackets at each corner for mounting to
wall. 30 inches tall, 5 inch wide at the bottom, 24 inches wide at the top. In 4ft and 8ft lengths.
Hay racks made with galvanized steel and powder coated in your color choice
Item # (LGWM4) Large 4 ft. Wall Mount Hay Rack - (24" wide at top, 5" wide at bottom, 30" tall, 4' long-50lbs)
Item# (LGWM6) Large 6ft Wall Mount Hay Rack- (24" wide at top, 5" wide at bottom, 30" tall, 6' long- 65lbs)
Item # (LGWM8) Large 8 ft.Wall Mount Hay Rack - (24" wide at top, 5" wide at bottom, 30" tall, 8' long-90lbs)
Note: Feeder can be mounted on the wall, or attach included hooks for hanging on board, pipe, etc.
Feeders come with
hooks to hang on a
board of fence. If
hooks are unbolted
the feeder can be
placed on a wall.
When ordering specify if you prefer wall mount brackets, or hooks to hang on board or fence.
This Round Bale Hay feeder is 4' tall by 6' x 6' wide. Height from the
ground to the roof top is 7' 8" tall. The #BB1000 weighs @ 200lbs, and
the roof frame @ 120 lbs.  Built with galvanized steel, 16 gauge- 1 5/8"
round tube on the outer frame. 1 3/8" round tube curved bars. And 1"
round tube vertical bar ends. All Big Bale Feeders are now Powder
Coated  for durable use, Choose any color from our color chart. The
spacing between the feeder bars is 6 7/8". Feeder Bars are set on 8 1/4"
centers. 15" from the ground to the bottom of the hay section. Customer
supplies roofing material for roof frame. Wood, Metal, or a tarp can be
used. Door has a spring loaded latch to prevent livestock from opening.
Bale weight limit 2500lbs.
Are you looking for a feeder or
hay rack that is not pictured on
our site? Do you have an
animal with special needs that
you just can't find the right
type of feeder for? Contact us
to get a quote for Custom Built
feeders or hay racks. We will
build to suit your needs!

Giraffe Feeders Pictured

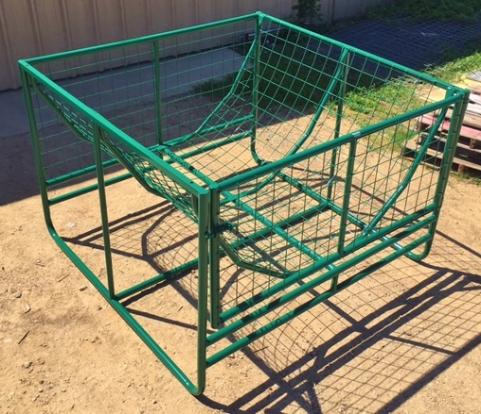

Item # BB1000W = Big Bale Round Bale Hay Feeder
with 4x4 wire mesh hay area.

Item # BB1000WT-Big Bale Round Bale Hay Feeder
with 4"x4" wire mesh hay area and trough=

Item # BB1000R = Big Bale Roof frame
(customer supplies roofing material for roof frame. Wood, metal, or tarp can be used.)
Choose any color from the color chart- no extra charge
Hay Feeders that will hang on a
pipe gate or board.  Sized for the
Average Sized horse. Remove
hanging brackets to mount feeder
to the wall. These feeders are
made of galvanized steel and
powder coated in your color choice
from our color chart.
Dimensions: 47 lbs., 36" tall, 24" wide,
19" deep. 1 3/8" (16 gauge) tubing frame.
1" (16 gauge) hay area. 18 gauge sheet
metal.
8ft Rain Canopy and frame pictured
on the #GFHD8B hay rack, with
special ordered red cover
Galvanized Hay Rack with trough and top cover, painted silver: 40" wide x 22" tall x 15" front to back.
Hay area is 15" at top and 4" at bottom. Single bar in middle of hay area. Top rack can be built to hinge
from front or back. 40lbs.
Item # GF40 -
CornerFeeder
18" corner to
end-22"
high-50lbs #GFC-
Price: $235.00
Galvanized Hay Rack with trough and top cover painted silver: 42" wide x 24" tall x 18" front to back.
Hay area is 18" at top and 12" at bottom. Double bars in middle of hay area. Top rack can be built to
hinge from front or back. 55lbs
Item# GF42-
Galvanized Hay Rack with trough and top cover, Powder coated Wheel Gray unless another color is
requested: 44" wide x 33" tall x 20" front to back. Hay area is 20" at top and 12" at bottom. Double bars in
hay area. Top rack can be built to hinge from front or back. 70lbs
Item # GF44-
HAY BASKET
Item # HB101 -
Let us know your color preference from our color chart
Measurements of Hay Basket
19.5" wide at top
16.5" wide at bottom
10" front to back at top
2" front to back at bottom
20" tall
Fence Mount Hay Rack like the Wall Mounts pictured above is available with hooks instead of wall mount
brackets, to hang on a board or pipe fence (specify size of hooks needed) . Solid metal back added to the open
back area and sides to prevent hay from falling out of the back side of the hay rack.
Item # (LGWM4.HB) Large 4 ft. Fence Mount Hay Rack with mounting hooks and solid back and sides
24" wide at top, 5" wide at bottom, 30" tall, 4' long
Item # (LGWM8.HB) Large 8 ft. Fence Mount Hay Rack with mounting hooks solid back and sides
24" wide at top, 5" wide at bottom, 30" tall, 8' long

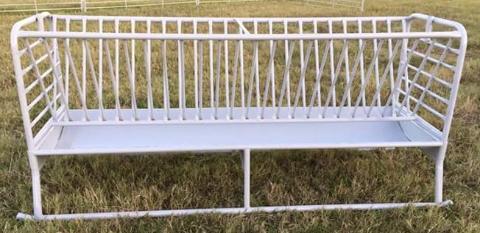

Hay Racks with Trough and Bar Top
#BB1000
#BB1000
#BB1000R
and
#BB1000R
and
spring loaded door latch

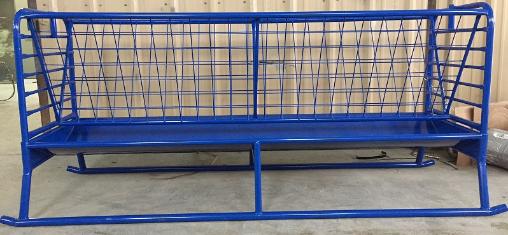

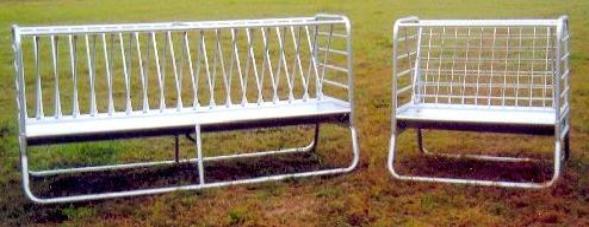

#GFHD4

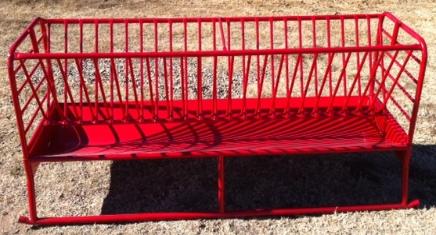

#GFHD8B
#GFHD8B Pictured with ADDED Rain Canopy
Frame ready to add the Rain Canopy Cover to.
See below for Rain Canopies and Frames
(# FHR8.W) wire mesh-Price:
Do you have really
small miniature animals?
Reduce leg height to
make the feeder lower
to the ground for your
very small animals at no
extra charge.
#GFHD8

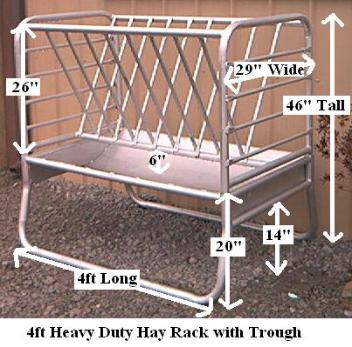

#GFHD DIMENSIONS

34" wide at skids
29" wide at trough
26" wide at top of hay rack
18" from ground to top of trough
44" from ground to top of hay rack
6" deep trough
Bottom of hay rack sits at top of trough
Bars on 4" centers (3.25" between bars)
4' hay rack= 48" long feeder ; (54" long skids)
6' hay Rack= 72" long feeder (78" long skids)
8' hay rack= 96" long feeder ; (102" long skids)

Skids and legs - 16 gauge, 1 5/8" tubing
Top frame- 16 gauge, 1 3/8" tubing
Hay area bars- 16 gauge, 3/4" tubing

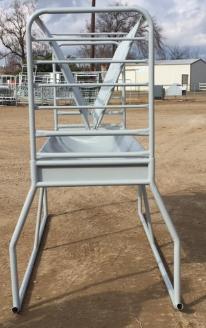

#HF (4', 6', 8') HAY RACK DIMENSIONS
36" wide at skids
29" wide at trough
26" wide at top of hay rack
36" from ground to top of trough
72" from ground to top of hay rack
6" deep trough
Bottom of hay rack sits 6" above trough
Bars on 5" center (4.25" between bars)
4' Hay Rack= 48" long feeder (54" long skids)
6' hay Rack= 72" long feeder (78" long skids)
8' Hay Rack= 96" long feeder (102" long skids)

Skids and legs - 16 gauge, 1 5/8" tubing
Top frame- 16 gauge, 1 3/8" tubing
Hay area bars- 16 gauge, 3/4" tubing

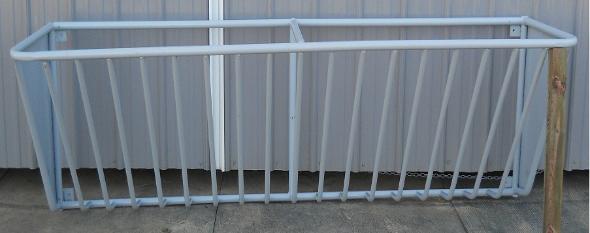

#LGWM4
#LGWM8
BIG SQUARE BALE HAY FEEDER
LGWM4.HB
LGWM4.HB
LGWM4.HB
Hay racks made with galvanized steel and powder coated in your color choice
LARGE LIVESTOCK FENCE MOUNT HAY RACK
Big Square Bale feeder pictured in use as a deer
feeder Customer added tarp to protect hay from rain.
Item # SB2000.A
Outside dimensions: 72" wide, 100"
long, 48" tall. Outside Pipe 1 5/8" -16
gauge. Inside pipe 1 3/8" -16gauge. Item
weight-270lbs. Bottom point of hay is 8"
off the ground. Hay area bars set in 8
1/4" centers. 6 7/8" opening between
bars. Made to fit 4' x 8' large square
bales of hay.
Assembly Required upon arrival.
This hay rack is much cheaper to ship, if it is
shipped disassembled.
Price:  each
This hay rack can be built as one solid piece if
requested and picking up directly at the factory.

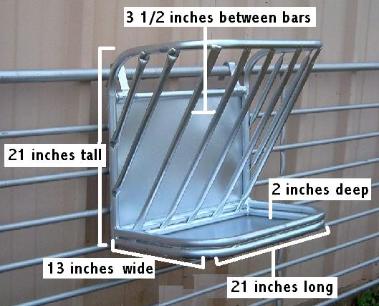

Measurements:
Width: 20 inches or 40 inches
Height: 21 inches
Front to back depth: 13 inches
Bottom tray depth: 2 inches
Hay area: 3 1/2 inches between bars
Mesh hay area is 4" square opening
Customized 40" Wide feeder
with bar sides and wire mesh
front hay area.
Customized feeder with hinged bar
top. Add a hinged bar top to the 20"
wide feeders for +$ 30.00 more.
1 5/8 inch (18 gauge) tubing frame
Wire hay area, 6 gauge welded wire
with 4"x 4" openings.
*Available with vertical bar hay area
3/4" (16 gauge) tubing on 4 inch centers
WHEEL
GRAY
BROWN
BLACK
FENCE
GREEN
RED
49 GRAY
BLUE
WHEEL
GRAY
BROWN
BLACK
FENCE
GREEN
RED
49 GRAY
BLUE
6ft tall - BIG BALE Round Bale Hay Feeder
Ideal for large/tall sized livestock, available with or without trough, bar hay area.
40" from the ground to bottom area of round bale.
Item # BB6000 - 6ft Tall Big Bale Round Bale  Hay Feeder - bar hay area =
Item # BB6000T- 6ft Tall Big Bale Round Bale Hay Feeder- bar hay area with Trough=

(Add roof frame to any Hay Feeder) #BB1000R- Roof Frame=
(customer supplies roofing material for roof frame. Wood, metal, or tarp can be used.)
#BB6000
#BB6000T
#WMHR4
#BB1000
Item # (LGWM6.HB) Large 6 ft. Fence Mount Hay Rack with mounting hooks solid back and sides
24" wide at top, 5" wide at bottom, 30" tall, 6' long   (95lbs)
Item # (WMHR8) 8 ft. SLWall Mount Hay Rack - (new design) 18" wide at top, 24" tall, 8' long
#BB6000W
#BB6000W
#BB1000W
Item # BB6000W - 6ft Tall Big Bale Round Bale  Hay Feeder - 4"x 4" mesh hay area =
Item # BB6000WT- 6ft Tall Big Bale Round Bale Hay Feeder- 4"x 4" mesh hay area with Trough=
BB6000W big bale feeder and
the BB1000W big bale feeder
showing height difference.
FHR4.B- 4ft Free Standing Hay Rack with bar hay area =
FHR8.B - 8ft Free Standing hay Rack with bar hay area =
#FHR4.B
Hay Racks
Pictured
(#HF8)
(# HF4)
#HHF.C - Hanging Corner horse stall feeder:
#HHF.L
Hanging Horse
Stall Feeder
w/hinged Lid
$ 241.00
#HHF.CT- Hanging Corner
Horse Stall Feeder with
Hinged Bar Top added: Price
Black feeder pictured with
custom 'added item'
horizontal rod.
Available in Bar or Mesh Hay Area
#BB6000T
#BB6000T
#BB6000
#BB1000
#BB1000T
lazyjvranch@yahoo.com
#GFHD4.W
  4' Heavy Duty Hay Rack w/ trough - mesh

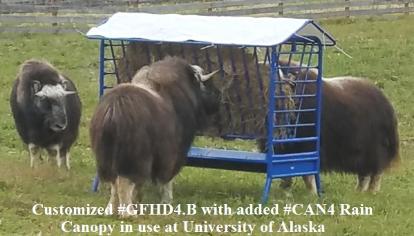

#GFHD4.B
96lbs
4' Heavy Duty Hay Rack w/trough - bar

#GFHD6.W
  6' Heavy Duty Hay Rack w/trough - mesh

#GFHD6.B
118lbs
6' Heavy Duty Hay Rack w/trough - bar

#GFHD8.W
  8' Heavy Duty Hay Rack w/trough - mesh

#GFHD8.b
152lbs
8' Heavy Duty Hay Rack w/trough - bar

# CAN4
  4' WHITE Rain Canopy and Frame

# CAN6
35lbs
6' WHITE Rain Canopy and Frame

# CAN8
45lbs
8' WHITE Rain Canopy and Frame

# HF4
  4' Heavy Duty Large Livestock Hay Rack w/ trough

# HF6
  6' Heavy Duty Large Livestock Hay Rack w/ trough

# HF8
  8' Heavy Duty Large Livestock Hay Rack w/ trough

PLEASE NOTE:

LAZY JV RANCH EQUIPMENT SALES
HAS A NEW WEBSITE

CLICK LINK TO GO TO THE EQUIPMENT CATALOG
WITH CURRENT PRICING, PICTURES, AND INFORMATION

LAZY JV RANCH EQUIPMENT CATALOG
Lazy JV Ranch has a

NEW WEBSITE

Click link below
LAZY JV RANCH EQUIPMENT CATALOG

For current , pictures, prices, and information on all products.
